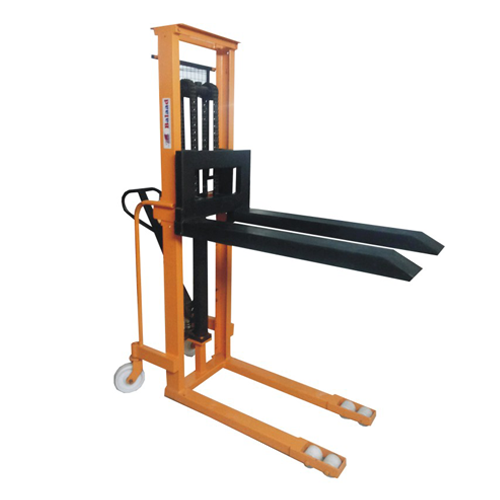

| Hydraulic Hand Stacker (Capacity:1000kgs/2000kgs/2500kgs) | ITEM CODE: DE-113 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Hydraulic Hand Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Capacity | 1000 Kgs |
| Structure | Heavy duty MS pipe & MS channel for Vertical support. & Fork made from heavy duty M.S. Sheet. |
| Lowered Ht. of forks | 90 mm. |
| Raised Ht. of forks | 1.6 mtr ( 1600 mm ) |
| Fork Length | 1150 mm ( 115 cm ) |
| Fork Width | 550 mm ( 55 cm ) |
| Overall dimensions | 2000 mm H of mast in lowered position with single mast . |
| Wheels | 2 nos. 200 X 50 mm & 2 nos. 82 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Hyd. unit | Electro hydro push button control & continuous running power pack unit having DC motor with 12 volt Battery supply and single phase Charger for Battery. An inclined cylinder having hard chrome plated piston with limit switch. |
| Handle | Designed For Best Maneuverability & Made Of M.S. pipe handle at rear end........... |

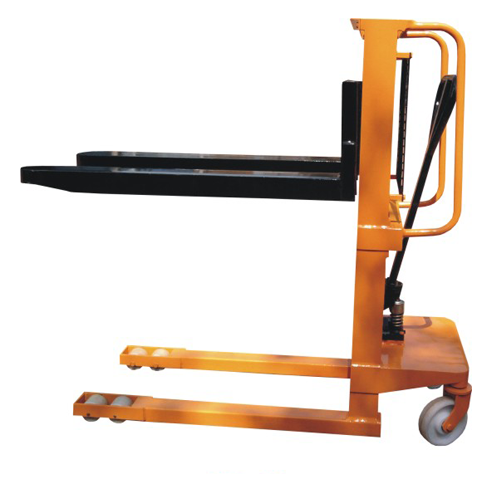

| Mini Hydraulic Stacker (Capacity: 1000kgs/1500kgs) | ITEM CODE: DE-114 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Mini Hydraulic Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Capacity | 1000 Kgs |
| Structure | Heavy duty MS pipe & MS channel for Vertical support. |
| Lowered Height | 90 mm |
| Raised Height | 1600 mm |
| Fork Length | 1150 mm |
| Fork Width | 550 mm |
| Wheels | 2 nos. 180 X 50 mm & 2 nos. 75 mm die X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Hyd. unit | 1 no. hyd. pump with hard chrome plated piston & inclined long cylinder with leak proof viper seals will be given to protect from ingress dirt & dust |
| Handle | Designed For Best Maneuverability & Made Of M.S. pipe handle at rear end........... |

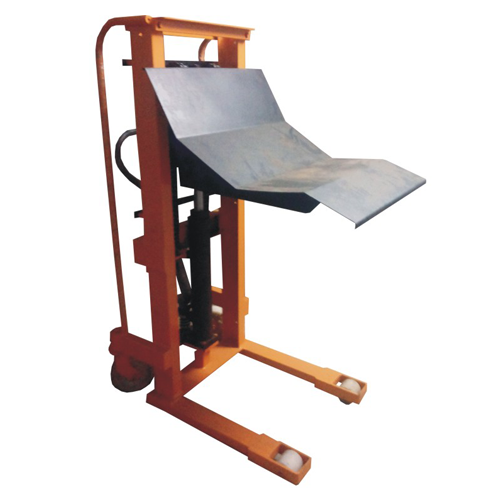

| Paper / Plastic Reel Stacker (Capacity: 500 kgs/1000kgs) | ITEM CODE: DE-115 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Paper / Plastic Reel Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Specification | |
| Capacity | 1000 Kgs |
| Structure | Heavy duty MS pipe & MS channel for Vertical support. & Fork made from heavy duty M.S.Sheet. |
| Lowered Ht.of forks | 90 mm |
| Raised Ht. of forks | 1.6 mtr |
| Overall dimensions | 1800 mm H of mast in lowered position with single mast |
| Wheels | 2 nos. 200 X 50 mm & 2 nos. 75 mm dia X 70 mm Heavy duty White Nylon wheels with double ball bearing |
| Hyd. unit | Electro hydro push button control & continuous running power pack unit having 1 HP motor, starter with 3 mtr long cable & 3 point plug pin. An inclined cylinder having hard chrome plated piston with limit switch |
| Handle | Designed For Best Maneuverability & Made Of M.S. pipe handle at rear end |

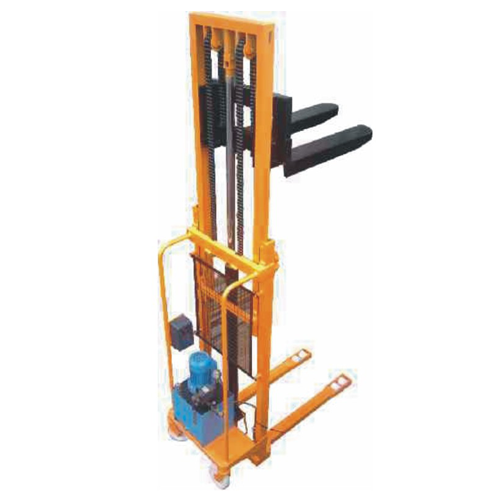

| Electric Hydraulic Stacker (Capacity: 1000kgs/2000kgs/2500kgs) | ITEM CODE: DE - 116 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Electric Hydraulic Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|

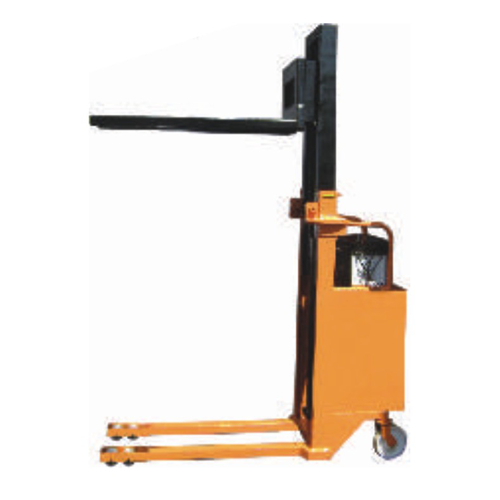

| Semi Battery Operate Stacker (Capacity: 1500kgs) | ITEM CODE: DE - 117 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Semi Battery Operate Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|

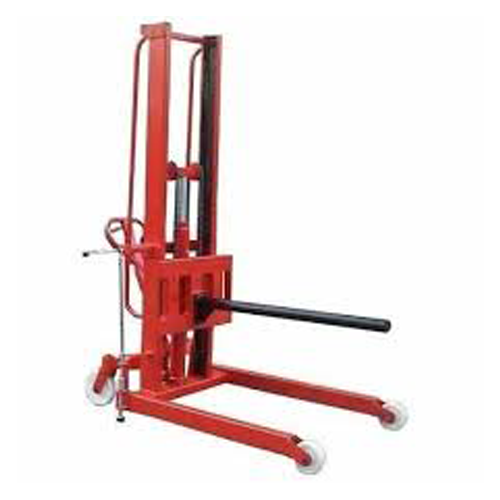

| Drum / Roller Stacker (Capacity: 500kgs/1000kgs) | ITEM CODE: DE - 118 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Drum / Roller Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Hydraulic Hook Stacker (Capacity: 1000kgs/2000kgs/2500kgs) | ITEM CODE: DE-119 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Hydraulic Hook Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|

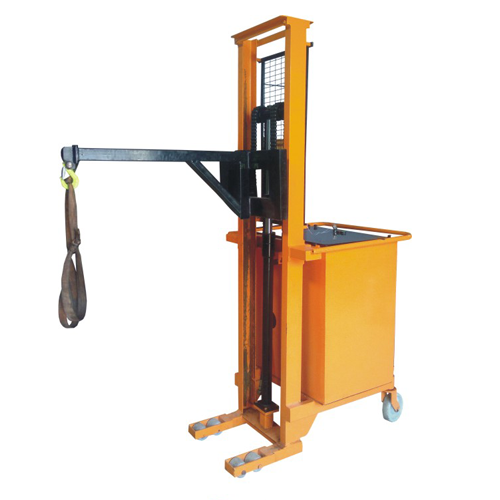

| Hydraulic Boom Stacker (Capacity: 500kgs/1000kgs) | ITEM CODE: DE-120 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Hydraulic Boom Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|

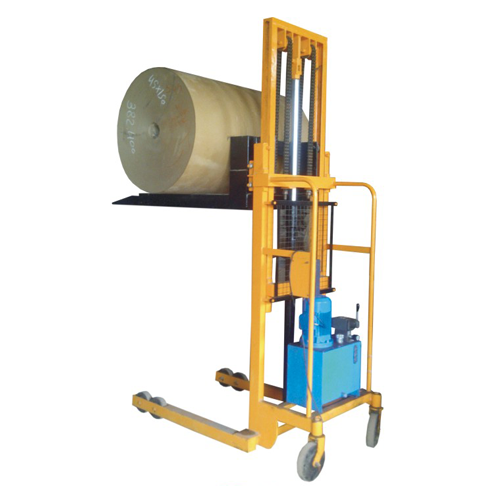

| Electric Paper Reel Stacker (Capacity: 1000kgs/1500kgs) | ITEM CODE: DE-121 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Electric Paper Reel Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
| Double Mast Stacker (Capacity: 1000kgs/1500kgs) | ITEM CODE: DE-122 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of Double Mast Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|

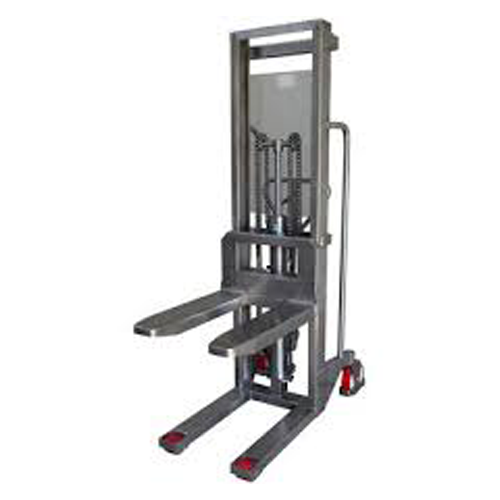

| S.S Hydraulic Stacker (Capacity: 1000kgs/1500kgs) | ITEM CODE: DE-123 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of S.S Hydraulic Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|

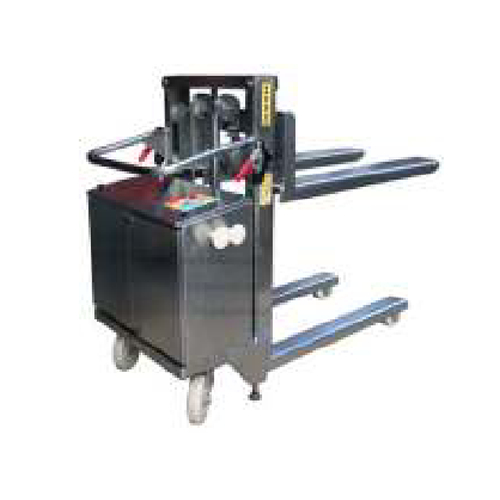

| SS Battery Operate Stacker (Capacity: 1000kgs/1500kgs) | ITEM CODE: DE-124 |
|---|---|
| We are one of the leading manufacturers and suppliers of a wide range of SS Battery Operate Stacker Our range is manufactured using premium quality raw materials and is extensively used in various industries. |
|
